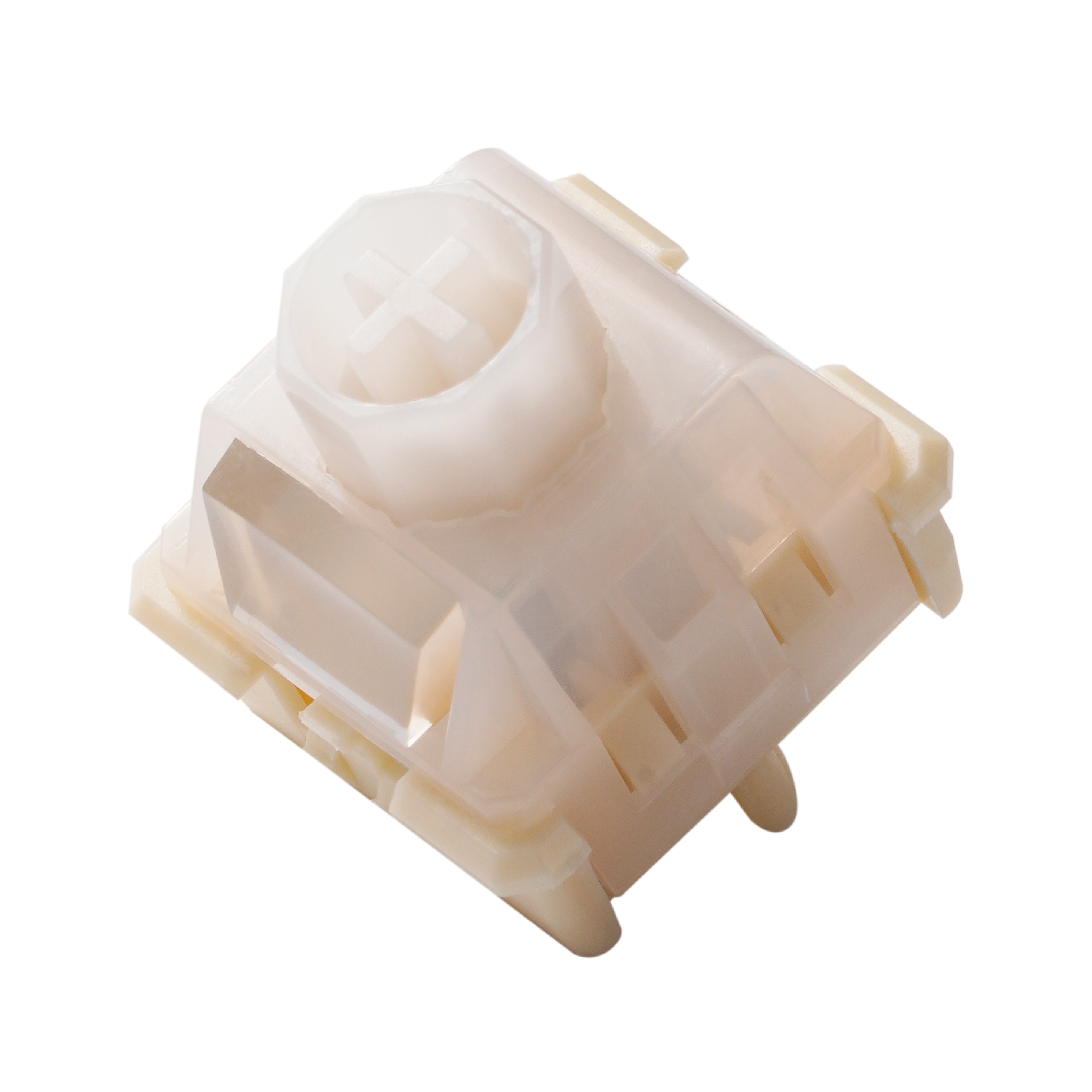

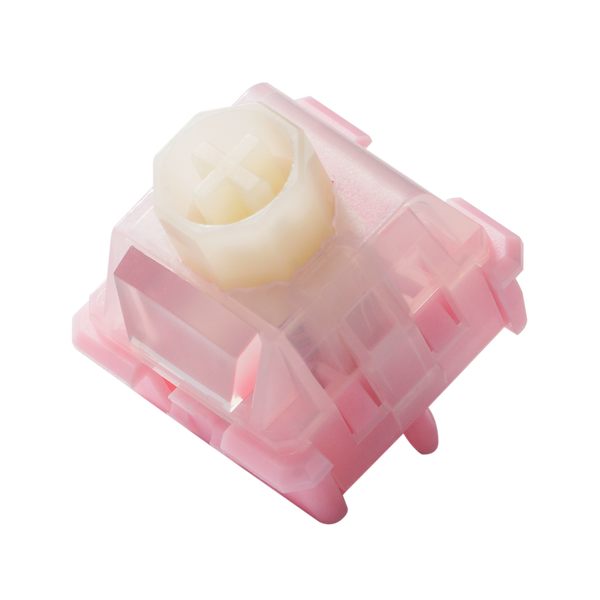

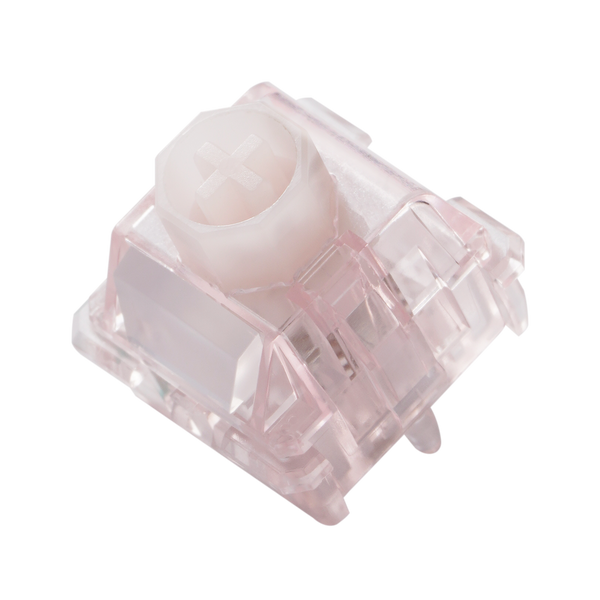

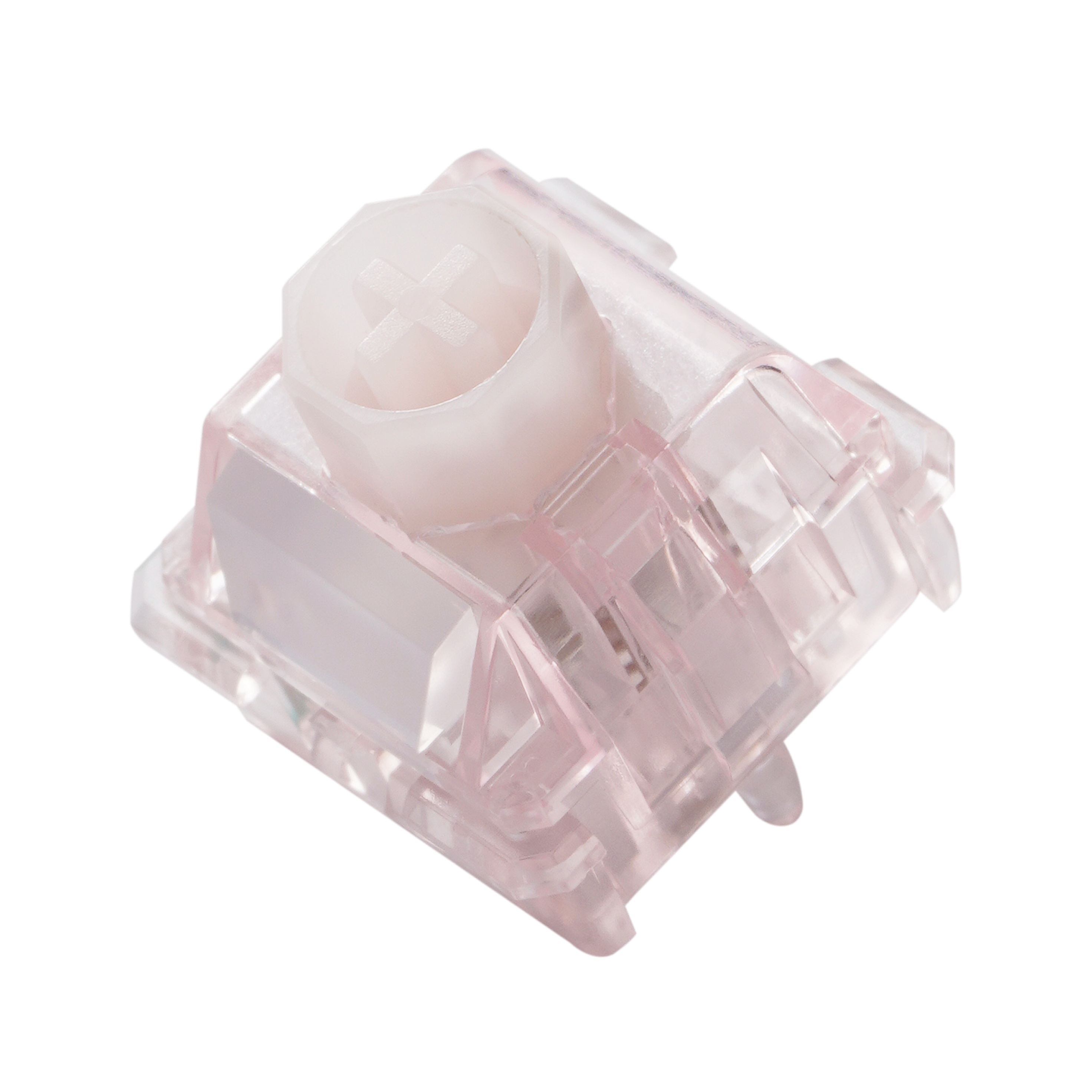

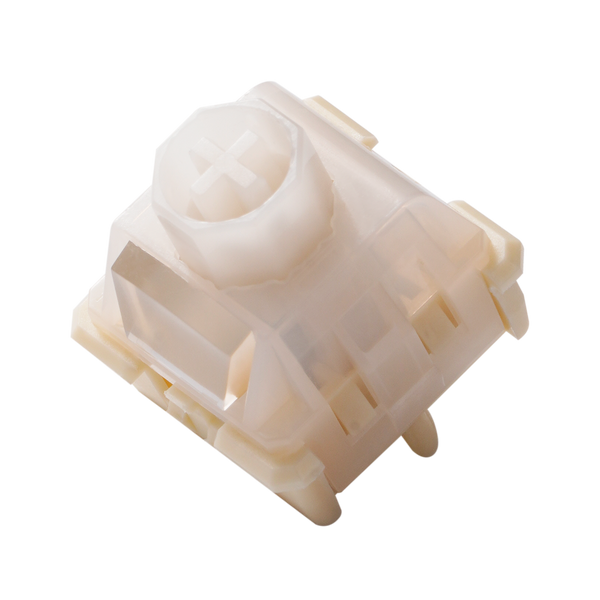

WS Flux Standard Series - HE Switches
Shipping calculated at checkout
WS Flux Switch - Redefining Stability with Precision Structure
Octagonal Stabilizing Stem | Precision Dual T-Slide Rail Structure | Golden Four-Point Rebound Limiting | Powerful Magnetic Flux Design
Octagonal Stabilizing Stem
Innovative octagonal stem design overcomes the 45° diagonal press deviation of traditional square switches, ensuring equal trigger distance for both vertical and diagonal presses.
Ultra-precision machining achieves 0.05mm uniform wobble clearance, delivering esports-grade accuracy for MOBA combos and rapid typing.
Precision Dual T-Slide Rail Structure
Simulating the dual T-slide rail structure of precision machinery, this design ensures ultra-smooth and stable keystrokes. This design minimizes noise and enhances tactile consistency.
Powerful Magnetic Flux Design
Equipped with oversized magnets measuring 3.6mm × 3.6mm and a gradient magnetic flux of 120Gs-640Gs. Paired with Hall sensor calibration, the triggering accuracy reaches 0.01mm, effectively reducing unintended presses and accidental activations.
Golden Four-Point Rebound Limiting
The four-point rebound limiting design significantly enhances the product’s balance, allowing for better control of initial precision.Whether for gaming or office use, you will experience more precise feedback, improving both work and gaming efficiency.
Testimonials
I tried typing on it at the expo, and the sound was really nice. It has a solid typing feel, and with a bottom-out force of 50gf, it feels heavier than expected. When you disassemble the switch, you’ll find that this flux switch also has a thick spring, and aside from the octagonal part of the stem, it has a very simple design with almost no space inside. The lubrication is also very well done.
나나 NANA_Jane
YouTube Content Creator
"WS Flux HE switches are technically excellent, featuring reimagined designs that deliver unmatched consistency and construction quality. The precision factory lubing from K2 sets a new industry standard - cleaner, more precise, and more consistent than any other factory lubrication process available today. While showing slight stem wobble (still average by market standards), their overall smoothness, consistency in push feeling, and sound quality make this a minor consideration for most users."
ThereminGoat
（A passionate mechanical keyboard switch collector, reviewer, and industry researcher）
"Wuque Studio’s Flux hall-effect switches include a number of improvements over Gateron and other HE switches. The most obvious is the octagonal stem.
With an octagonal stem, Wuque have dialled this in to be near as damn 1:1.
Both switches have noticeably better stability than the Gateron Jade Pro's. This applies across the full range of the keystroke, since the stem is housed by the octagonal outer profile. A small difference in switch deflection, once you’ve got a tall enough keycap installed, can result in a considerable difference in key stability."
