【GB】DK1-60% Keyboard Dark Gold
Estimated delivery time: November
The GB will end on September 2nd, 10:00 AM （Beijing time）
Note
- WK version: No nameplate, includes 2 free metal keycaps
- Default top case: Marblano finish
- Silver badge by default: Cyan Glaze, Lilac, Titanium Gray, Ice Blue, Silver
- Black badge by default: Black, Wine, Phantom Blue, Dark Gold
Marblano Weight – The Top case and weight share the same color.
Sale price
$239.00
Shipping calculated at checkout
Description
Product Specifications
Keyboard Layout:
60% (60-key layout)
Dimensions:
292.5 × 110 × 30.5 mm
Front Height:
15.5 mm
Typing Angle:
8°
Case Material:
- Top Case: Aluminum
- Bottom Case: Copper or Brass
- Counterweight: Aluminum or Copper
Finish Treatment:
Anodized (Top Case)
Mounting Style:
- Plate: Silica Gel Particle Mounting
- PCB: Elastic Bar Silicone Mounting
Connection Types:
Tri-mode (USB / Bluetooth / 2.4GHz)
PCB:
- 1.6mm hot-swappable PCB
- VIA compatible
- Supported Layouts: 60%
- Hotswap Support: Yes
Bluetooth Version:
BLE 5.3
Polling Rates:
- Bluetooth: 125 Hz
- 2.4GHz: 1000 Hz
- Wired: 1000 Hz
Battery Capacity:
2 × 1200mAh
Default Plate Material:
PC / Aluminum/ FR4
RGB Support:
No
Operating System Compatibility:
Windows / macOS / Linux / Android
Weight (Assembled):
- Aluminum Counterweight: 1.73 kg
- Copper Counterweight: 2.03 kg
Kit Contents
1. DK1-60% kit
2. PCB
3. Sound pack
4. Plate
5. PCB Stabilizer
6. Silicone bag
7. Data cable
8. Screwdriver
9. D Series keyboard bag
10. DK1-60% keyboard flannel bag
DK1-60% Keyboard Add-ons
Front
The DK60 retains a slim-bezel design, utilizing an internal screw-fastening solution to further narrow the top and bottom borders.
Badge
A stainless steel accent is added to the "front teeth" (upper case trim), featuring an angled-cut design with a dual-effect PVD finish (mirror + frosted). This elevates the minimalist aesthetic with refined detailing.
Side Profile
The three-tiered layered design is crafted using wire-cutting techniques. The side and front profiles subtly reveal the base shell’s color, enhancing visual depth.
Marblano Effect
For the first time in a keyboard, we’ve employed our"Marblano" finish—as shown in the product images—delivering a strikingly beautiful and unique visual experience. The metal surface vividly reflects dynamic interplays of light and shadow, creating a mesmerizing depth.

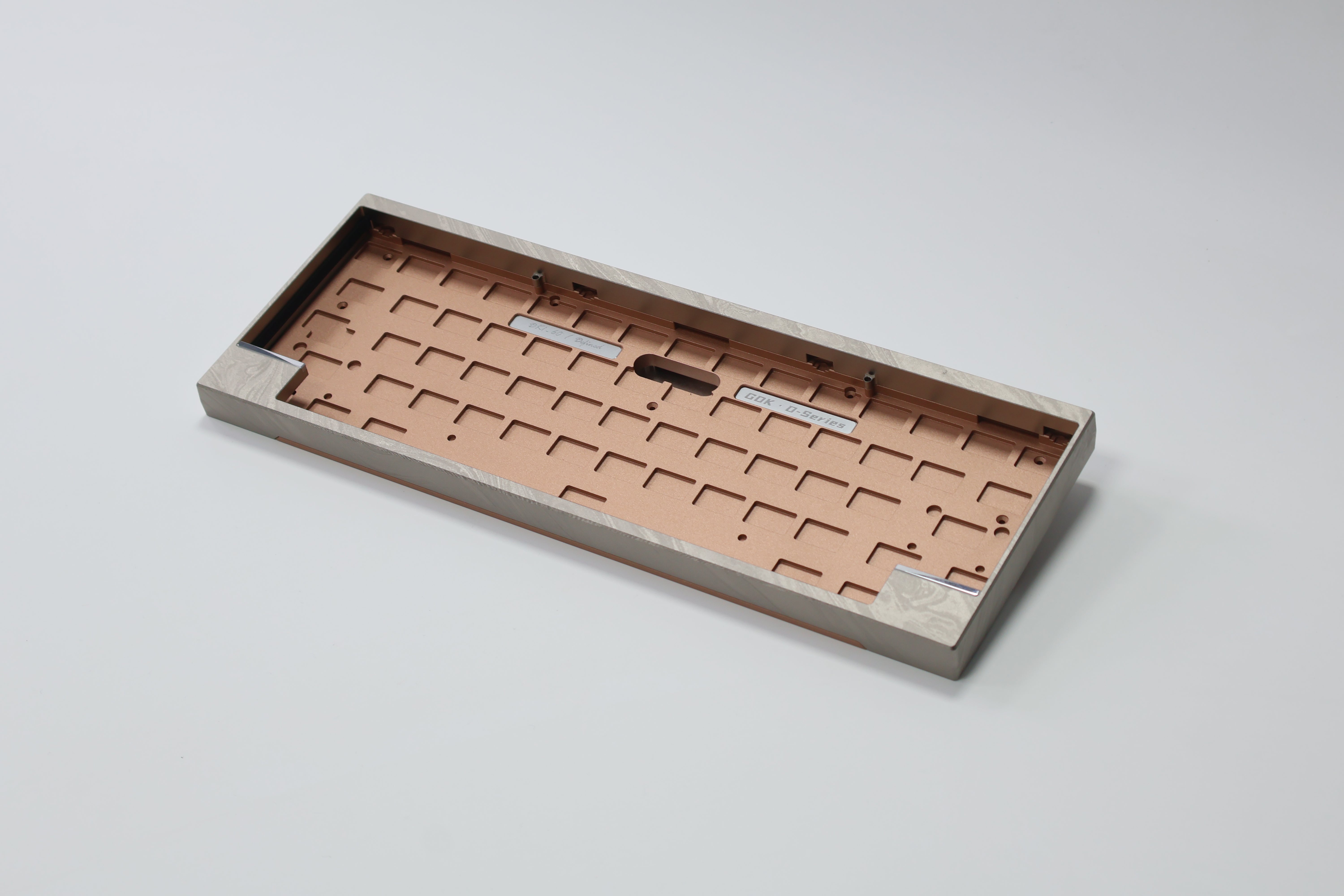

Internal Structure
The DK60 features a dual Gasket design (plate-mounted + PCB-mounted), with optimized mounting points for enhanced consistency.
It incorporates the same silicone cushioning systemas our 80% series—including plate silicone posts and PCB silicone gaskets—offering players two hardness options (30A soft / 70A firm) for customizable typing feel.
Plate-Mounted Gasket
Exploded View
Layout & Dimensions
Real Photos
Titanium Gray
Lilac
Cyan Glaze
Wine
Phantom Blue
Black
VENDORS
Nation/Region
US
Canada
Germany
Swden
Maxgaming
Australia
KeebzNcable
Italy
Singapore
Taiwan
Inpad
Vietnam
India
Malaysia
Rebult
Product Notice & QC Standards
This product is a customized kit and requires you to select switches and keycaps to assemble a complete keyboard. If you encounter any issues while using the product or service, please feel free to contact us.
QC Standards:
Please carefully inspect the product’s appearance before removing the protective plastic wrap. If any issues are found, contact our customer service for after-sales support promptly. Once the plastic wrap is removed, returns or exchanges without reason are not accepted, and no appearance-related after-sales service will be provided. Thank you for your understanding.
Appearance After-Sales Standards:
(Due to manufacturing limitations, the product has anodized mounting points internally, and no after-sales service will be provided for all internal surfaces. Thank you for your understanding.)
Anodizing:
Up to two blemishes no larger than 1mm are acceptable on primary visible surfaces. If this standard is exceeded, you can apply for after-sales service.
Painting:
Up to two blemishes no larger than 1mm are acceptable on primary visible surfaces. If this standard is exceeded, you can apply for after-sales service.
PVD Coating:
Up to three blemishes or scratches no larger than 1mm are acceptable on primary visible surfaces. If this standard is exceeded, you can apply for after-sales service.
If any issues arise, please contact us first. Thank you for your support and understanding. We look forward to resolving any problems for you!
