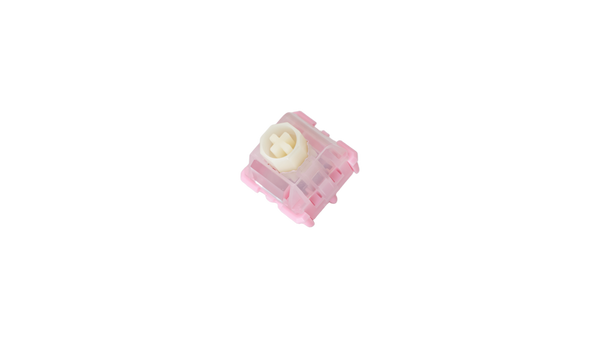

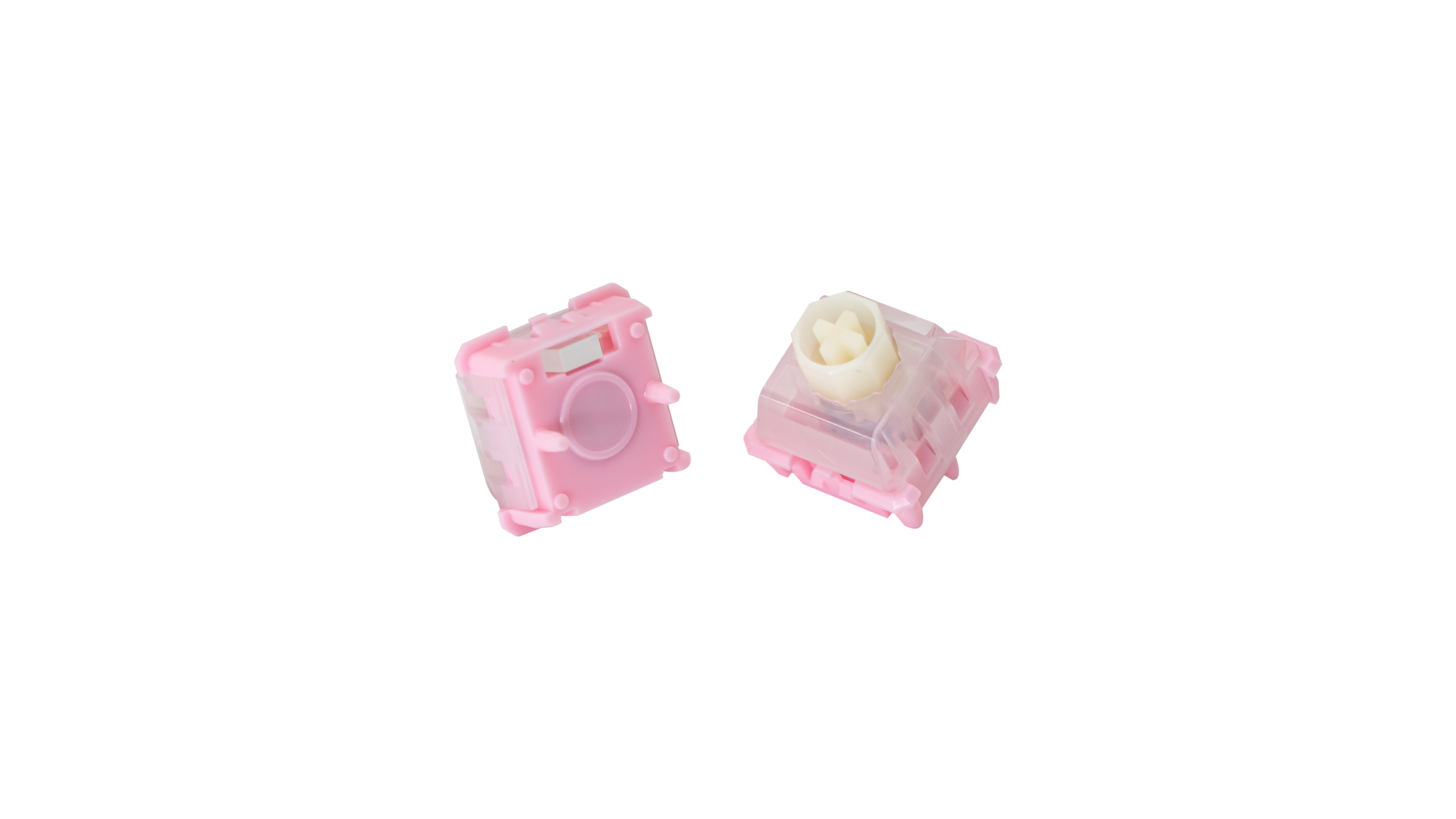

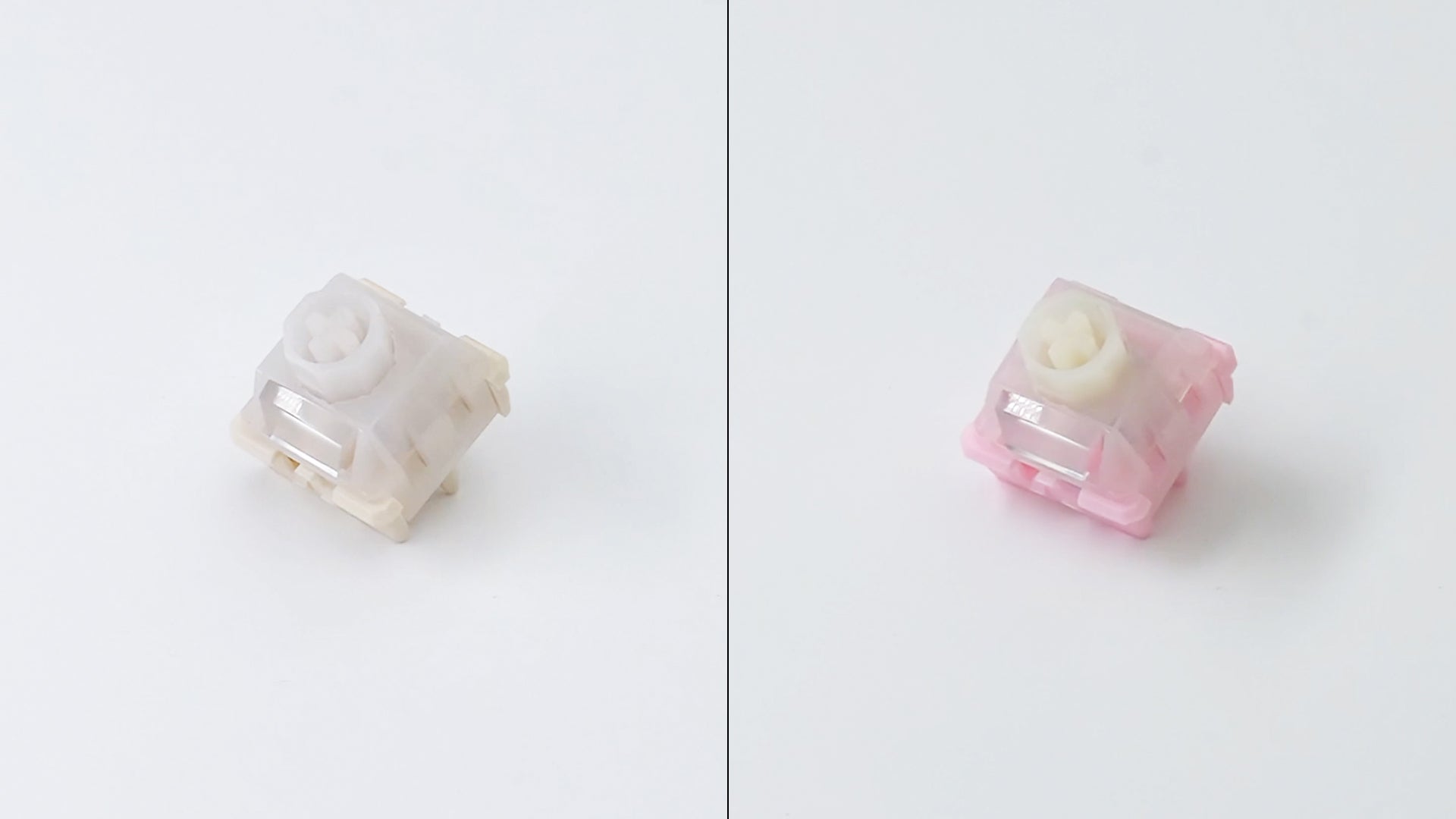

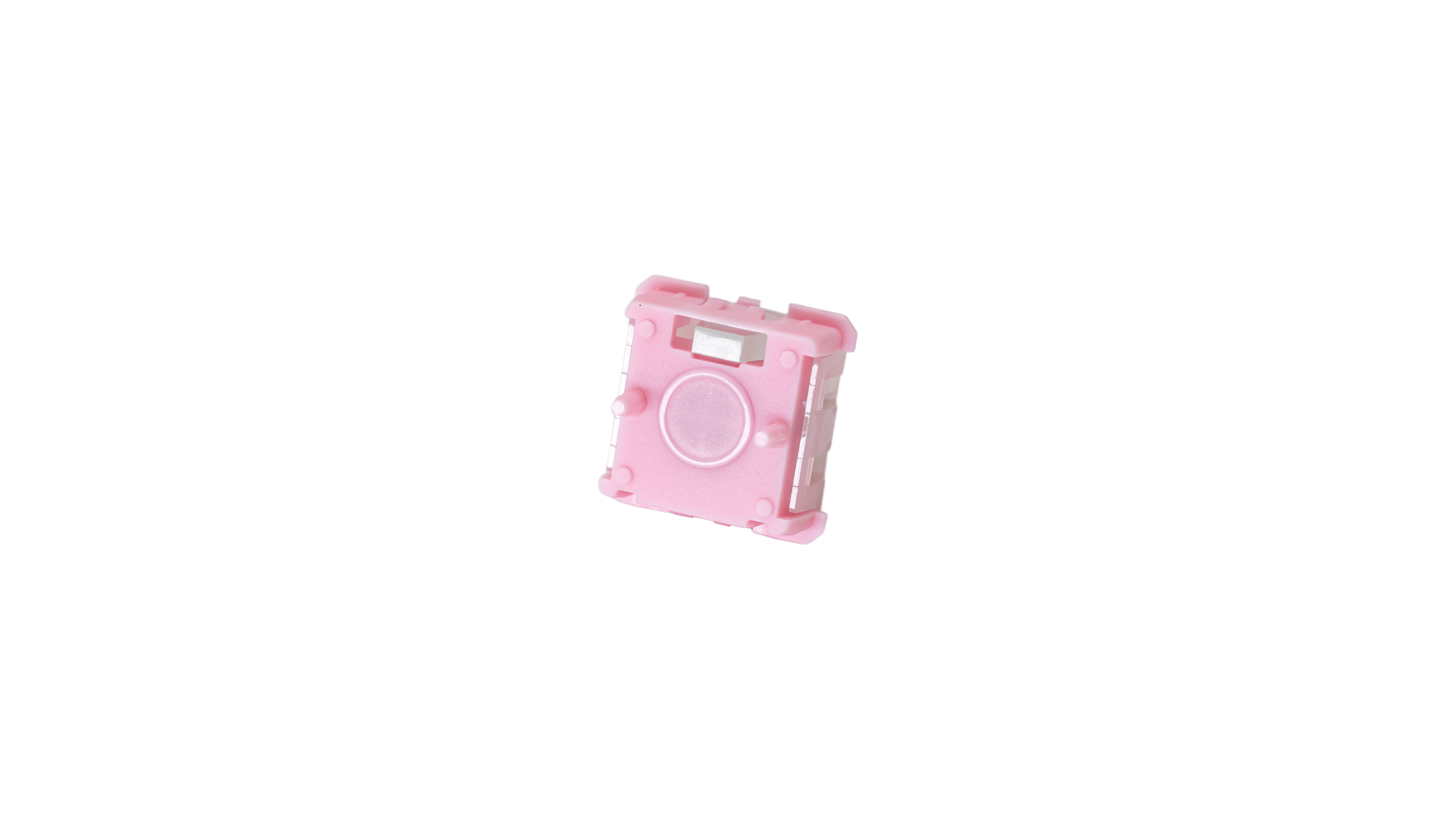

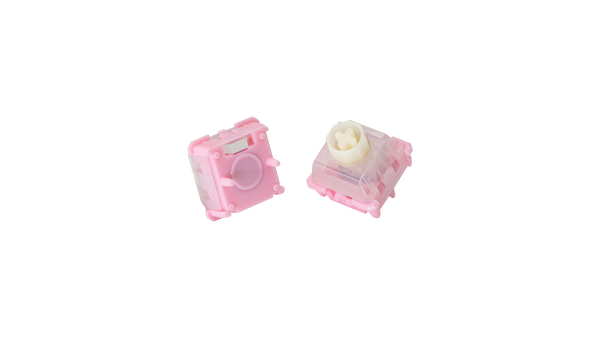

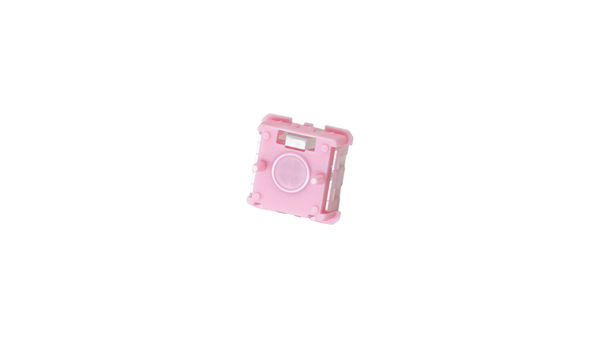

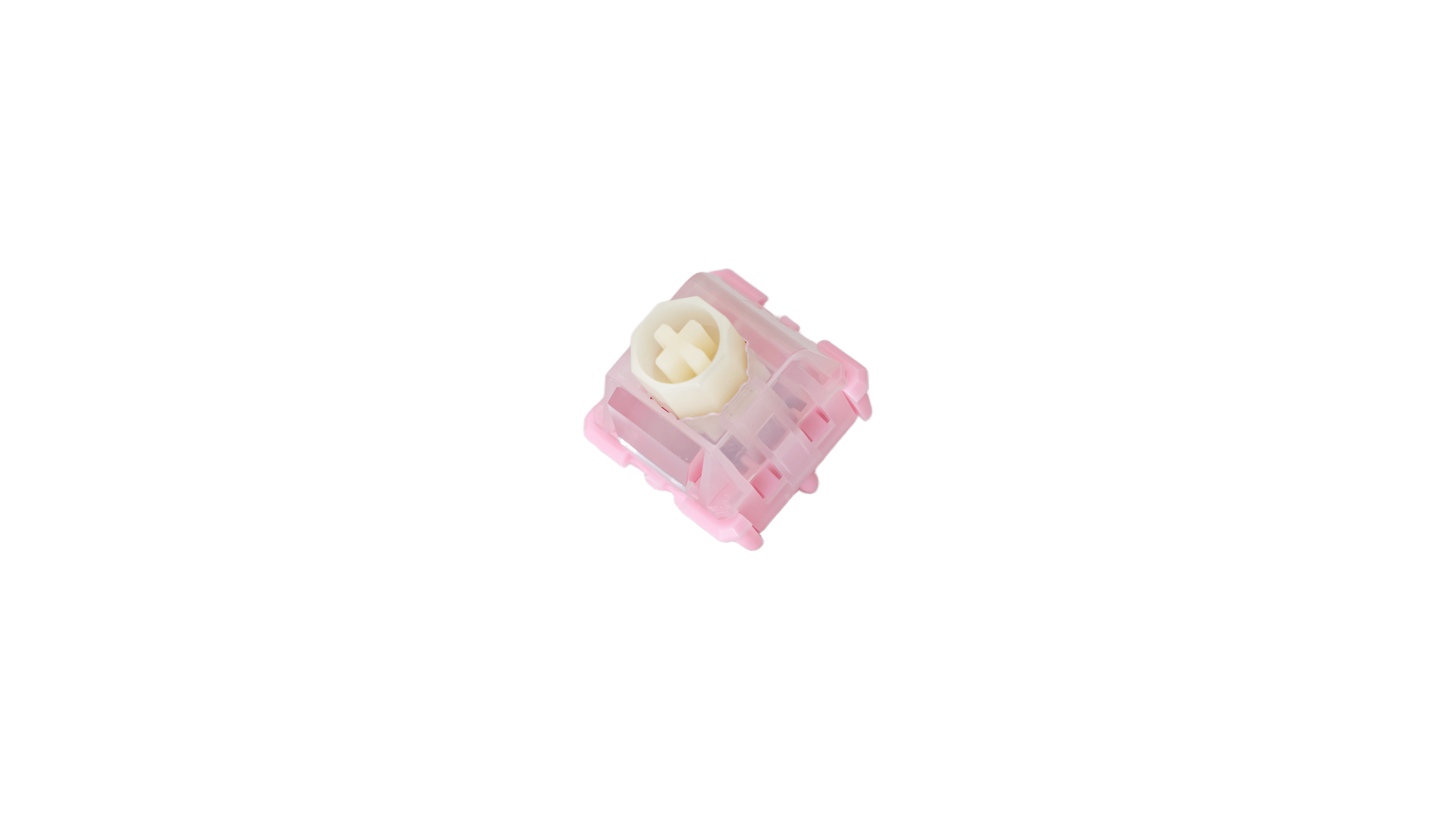

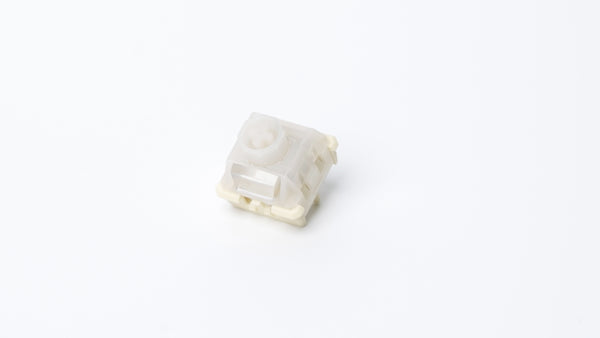

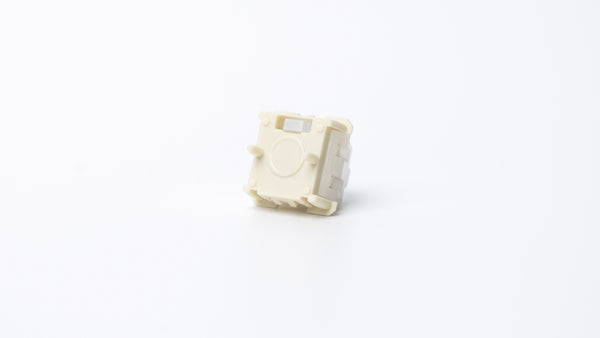

WS Flux Switch
Important Notice for Switch Removal
When pulling out switches, always apply force vertically upward, slowly and evenly.
Tilting or using excessive force may bend or even damage the switch pins.
For a safer and more effortless operation, we recommend using our precision-designed Titanium Switch Puller.
Shipping calculated at checkout
WS Flux Switch Specifications
Typing Style: Linear
Top Housing: PC
Bottom housing: PC
Stem: POM
Initial force: 35士5gf
Total Travel: 3.50士0.10mm
Bottom Out Force: 50士7gf
Trigger stroke can be freely defined
Initial magnetic flux: 115+15Gs (1.6mmPCB)
Bottom-out magnetic flux: 635+50Gs (1. 6mmPCB)
Lifetime: 100 million
Pre-Lubed: Yes
Features:
1 - Octagon Stem - Moving away from your typical rectangle design, the Eight-Sided Stem brings the minimum level of tolerance on every touch, from every position. Here, we've been able to create the most stable switch available
2 - T-Style Rail System - Implementing the new rail system works hand in hand with the new Stem. Together, the Stem and the Rail System work harmoniously in creating not only an extremely smooth experience, but it helps in creating the most stable switch.
3 - Four Point Rebound System - While not so obvious, the Four Point Rebound System continues the trend of creating stability and smoothness.
4 - Precision Lubing - Using top-of-the-line machinery, we've been able to create a lube process that is extremely consistent across four points, including the two rail systems, center core, and spring.
WS Flux Switch - Redefining Stability with Precision Structure
Octagonal Stabilizing Stem | Precision Dual T-Slide Rail Structure | Golden Four-Point Rebound Limiting | Powerful Magnetic Flux Design

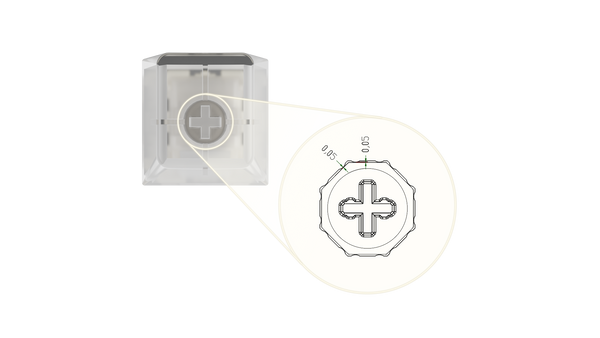

Octagonal Stabilizing Stem
Innovative octagonal stem design overcomes the 45° diagonal press deviation of traditional square switches, ensuring equal trigger distance for both vertical and diagonal presses.
Ultra-precision machining achieves 0.05mm uniform wobble clearance, delivering esports-grade accuracy for MOBA combos and rapid typing.
Precision Dual T-Slide Rail Structure
Simulating the dual T-slide rail structure of precision machinery, this design ensures ultra-smooth and stable keystrokes. This design minimizes noise and enhances tactile consistency.

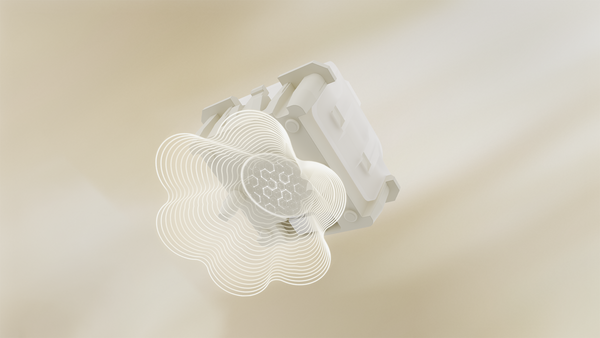

Powerful Magnetic Flux Design
Equipped with oversized magnets measuring 3.6mm × 3.6mm and a gradient magnetic flux of 120Gs-640Gs. Paired with Hall sensor calibration, the triggering accuracy reaches 0.01mm, effectively reducing unintended presses and accidental activations.

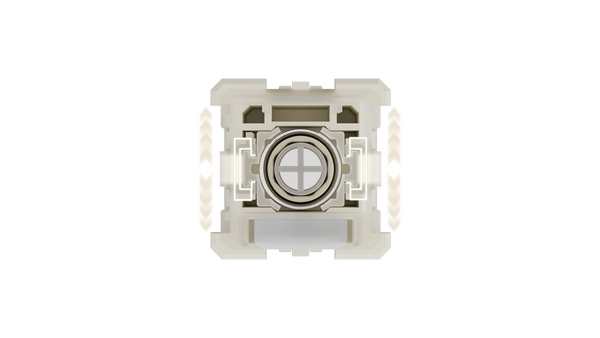

Golden Four-Point Rebound Limiting
The four-point rebound limiting design significantly enhances the product’s balance, allowing for better control of initial precision.Whether for gaming or office use, you will experience more precise feedback, improving both work and gaming efficiency.
Testimonials

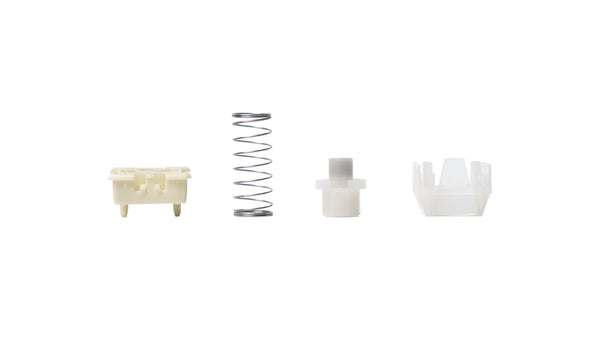

I tried typing on it at the expo, and the sound was really nice. It has a solid typing feel, and with a bottom-out force of 50gf, it feels heavier than expected. When you disassemble the switch, you’ll find that this flux switch also has a thick spring, and aside from the octagonal part of the stem, it has a very simple design with almost no space inside. The lubrication is also very well done.
나나 NANA_Jane
YouTube Content Creator
"WS Flux HE switches are technically excellent, featuring reimagined designs that deliver unmatched consistency and construction quality. The precision factory lubing from K2 sets a new industry standard - cleaner, more precise, and more consistent than any other factory lubrication process available today. While showing slight stem wobble (still average by market standards), their overall smoothness, consistency in push feeling, and sound quality make this a minor consideration for most users."
ThereminGoat
（A passionate mechanical keyboard switch collector, reviewer, and industry researcher）
"Wuque Studio’s Flux hall-effect switches include a number of improvements over Gateron and other HE switches. The most obvious is the octagonal stem.
With an octagonal stem, Wuque have dialled this in to be near as damn 1:1.
Both switches have noticeably better stability than the Gateron Jade Pro's. This applies across the full range of the keystroke, since the stem is housed by the octagonal outer profile. A small difference in switch deflection, once you’ve got a tall enough keycap installed, can result in a considerable difference in key stability."
