[Limited In-stock] Mammoth75

Mammoth 75/20 Wireless PCB Use Guide

Mammoth 75/20 Firmware and Json Files

Drop @ 00:00AM GMT +8, Beijing Time, Jan. 14, 2022

For Mammoth75 Add-ons click here

For Mammoth20 Pad click here

High Resolution Renders and Photos

Wuque Studio Mammoth75 Review: The Porsche of Mechanical Keyboards

Highlights

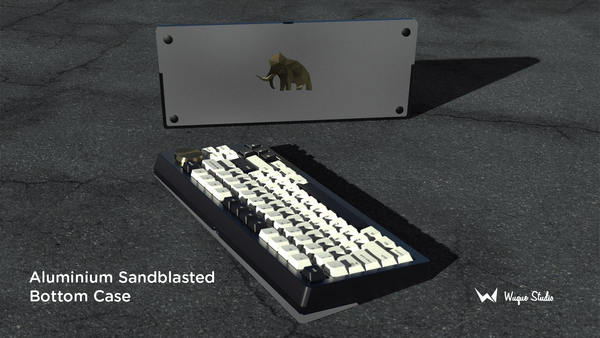

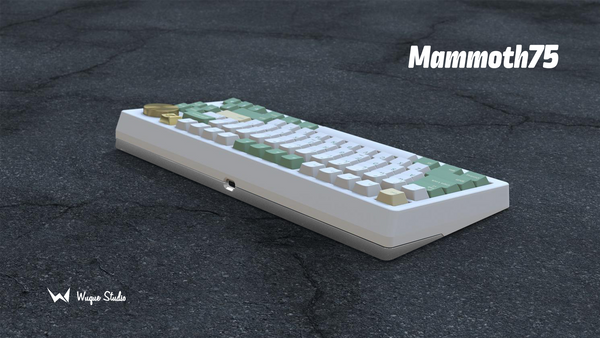

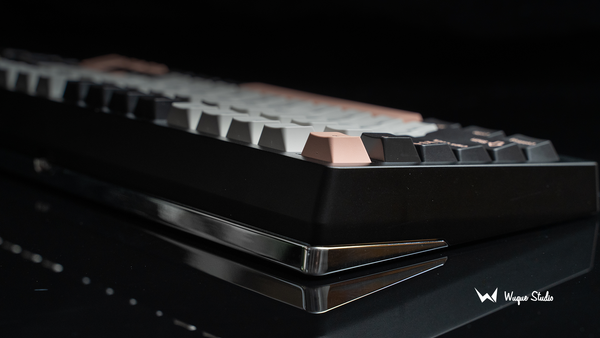

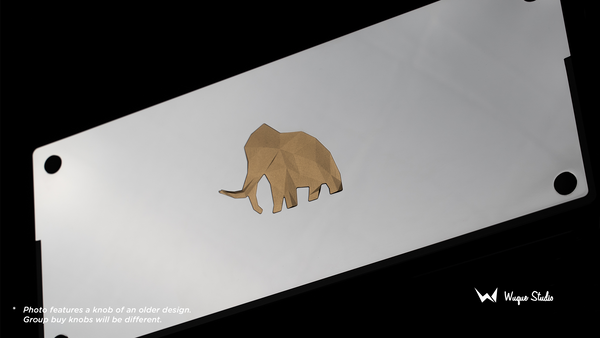

• Full Mirror or Sandblasted Bottom Case

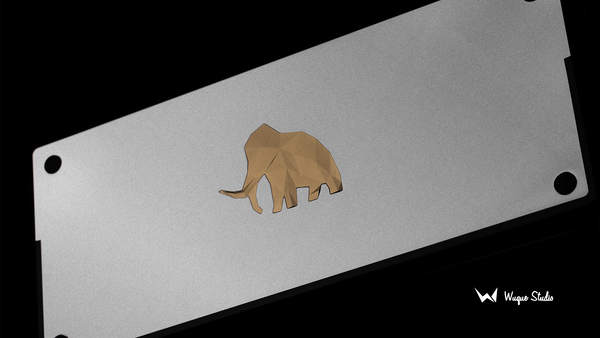

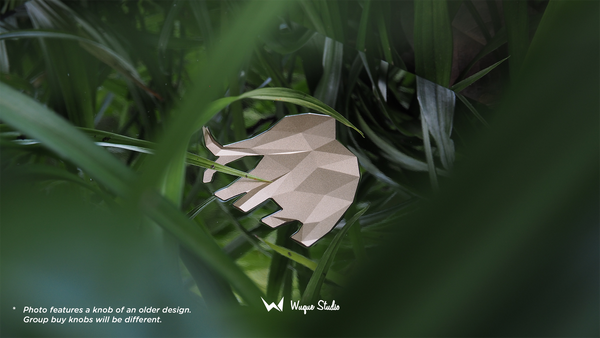

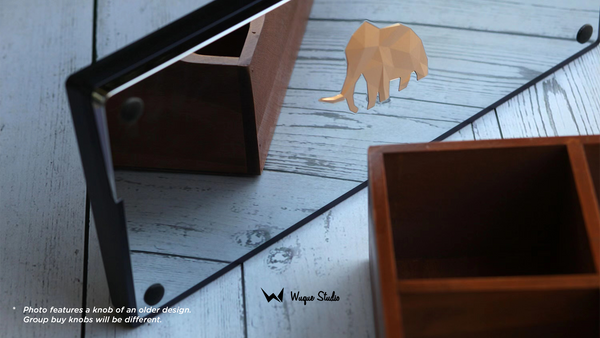

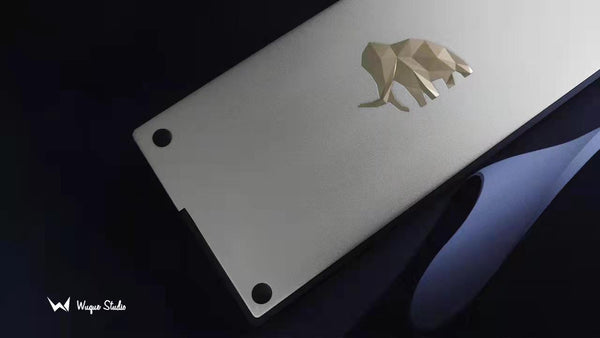

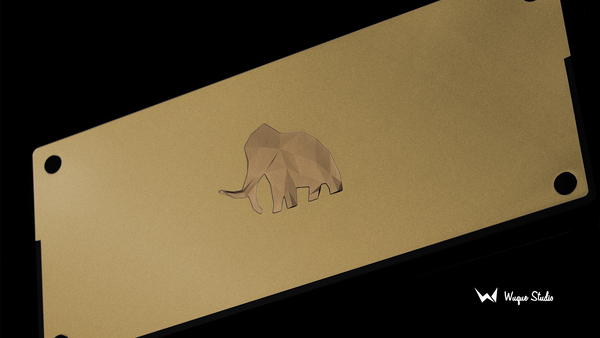

• Sandblasted Diamond Cut Mammoth Weight

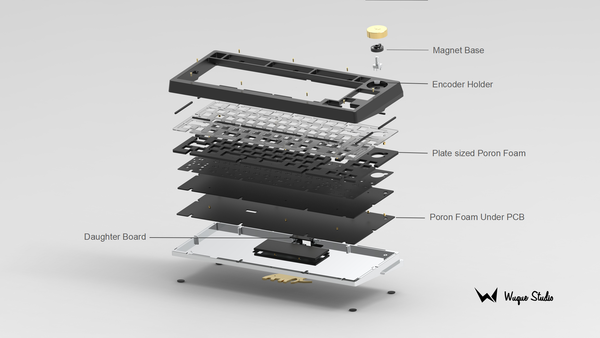

• Special Gasket Structure with Daughter board

The plate PORON foam is the same size as the plate, and it will touch the entire bottom case to achieve a stable typefeel. There is an adhesive PORON sheet pre-installed under the PCB for a deeper, more pleasant sound.

• Bluetooth PCB supports VIA

Check Mammoth75 BLUETOOTH PCB DEMO VIDEO HERE.

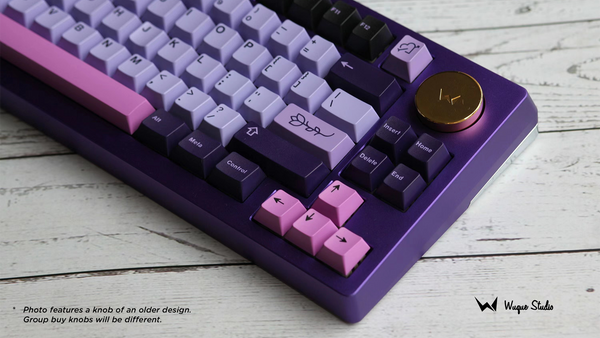

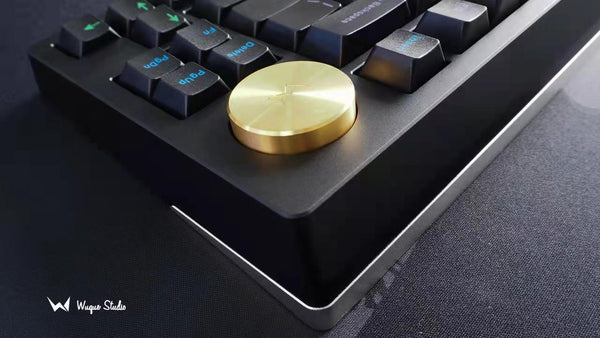

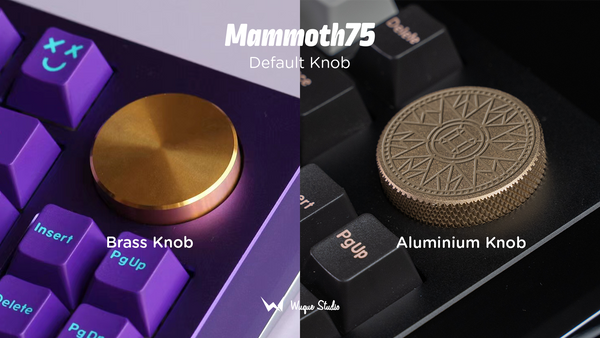

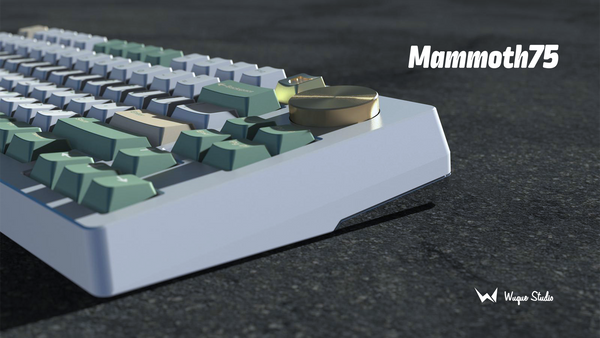

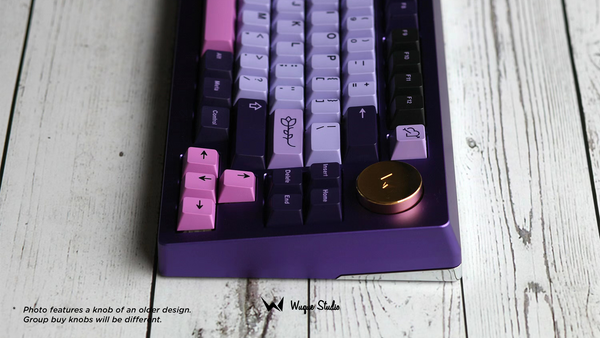

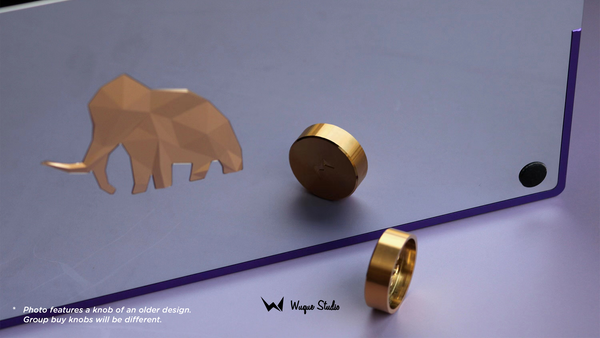

• Two magnetic knobs in each kit.

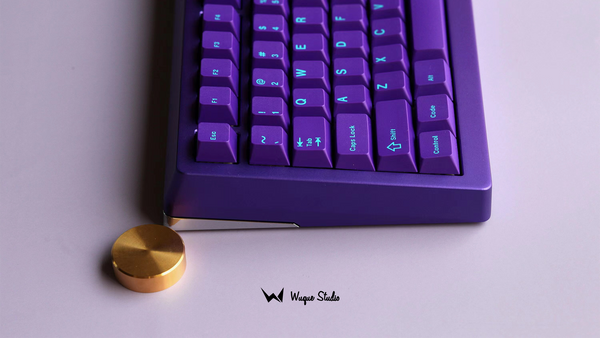

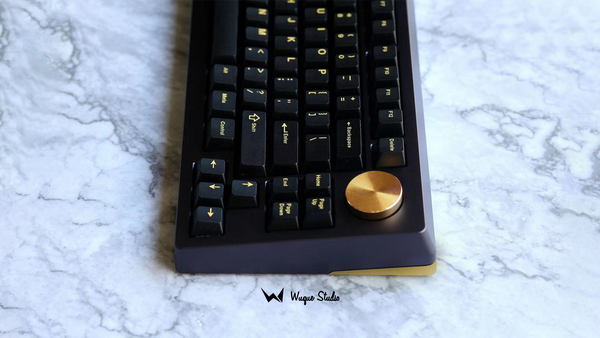

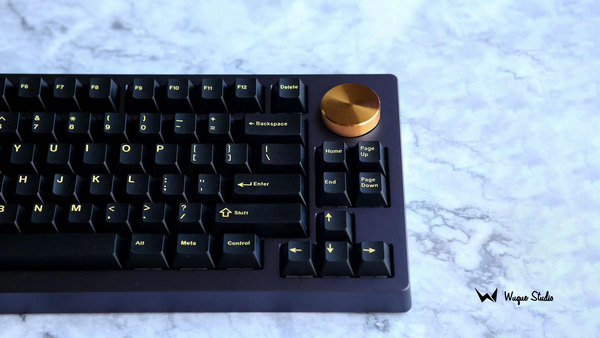

Each kit comes with an aluminum knurled knob with a CNC engraved pattern, and a plain brass knob with a radial brushed finish. Knobs have a magnetic base to make them much easier to swap out.

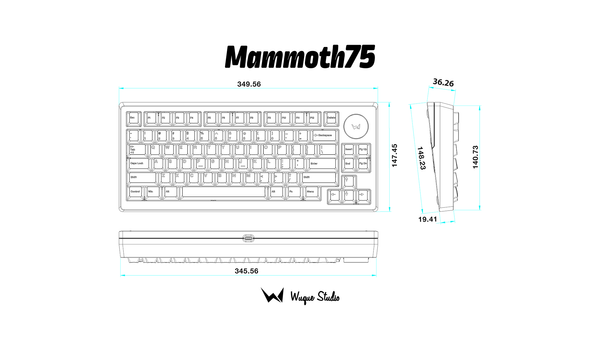

Brief info

• Typing angle: 6.5 degrees
• Front height: 19.5 mm
• Top case material: Aluminum

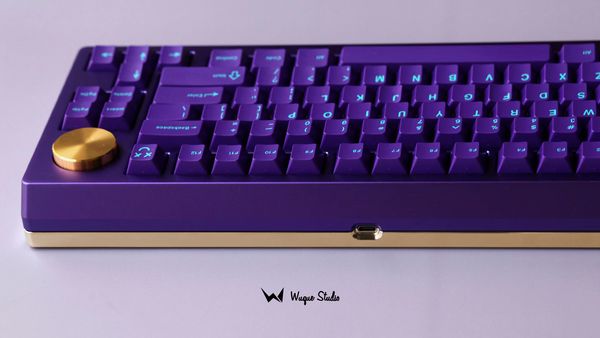

• Bottom case material: Aluminum/Brass
• Mounting structure: Gasket Mount
• Full aluminum kit Weight (unbuilt): 2.0 kg, package weight: 3.5 kg
• Aluminum top case, brass bottom case kit weight (unbuilt): 4.2 kg, package weight: Up to 5.5 kg

PCB Specifications:

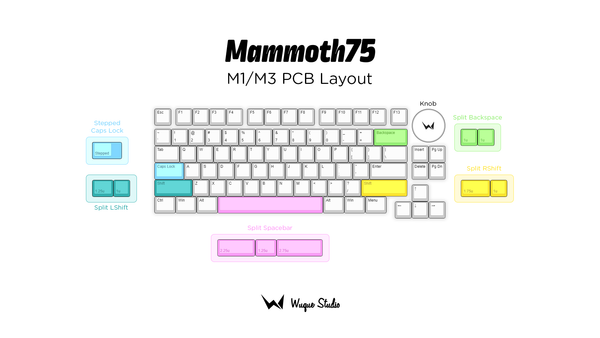

M1 PCB

Wired, hotswap, Supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock.

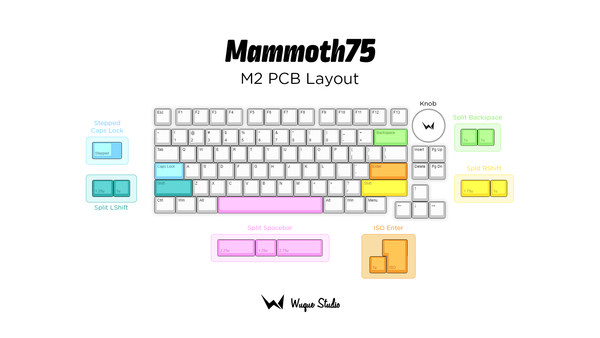

M2 PCB

Wired, soldered, supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock, ISO enter.

M3 PCB

Wireless, hotswap, Supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock.

For all PCB specifications, please check PCB table here.

Kit Contents:

• Top Case (Aluminum)

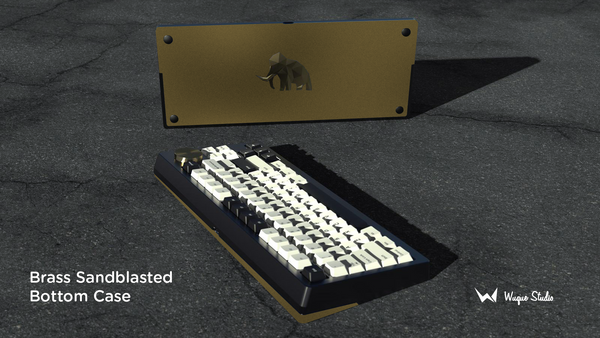

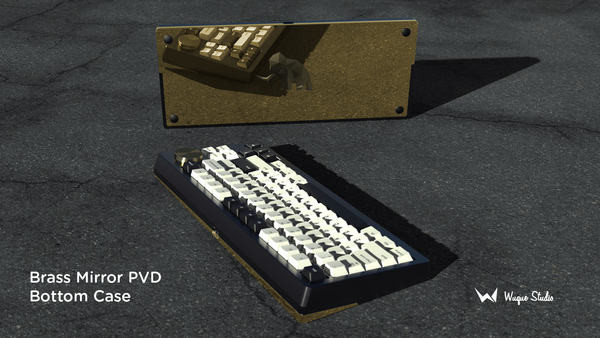

• Bottom Case (Aluminum/Brass Mirror PVD, Aluminum/Brass Sandblasted)
• PC Plate

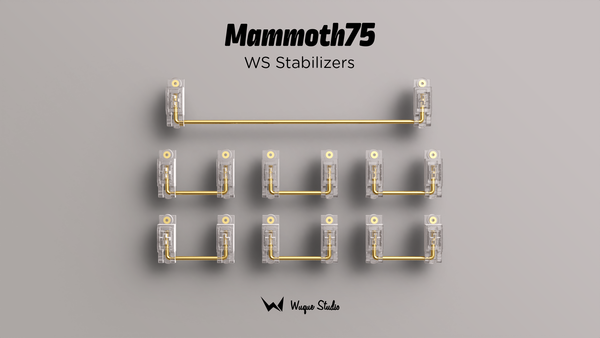

• WS Stabs 6+1
• PCB and daughter board
• PORON gaskets
• PORON dampener between plate and PCB
• PORON foam between PCB and switches
• PORON foam under PCB
• Gaskets
• 1x Aluminum knob

• 1x Brass knob
• Magnet base
• Encoder holder
• Screws and rubber feet

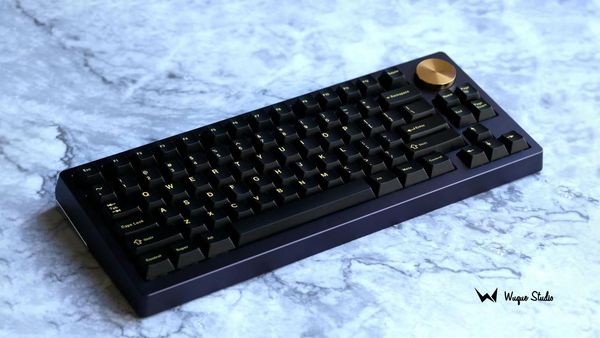

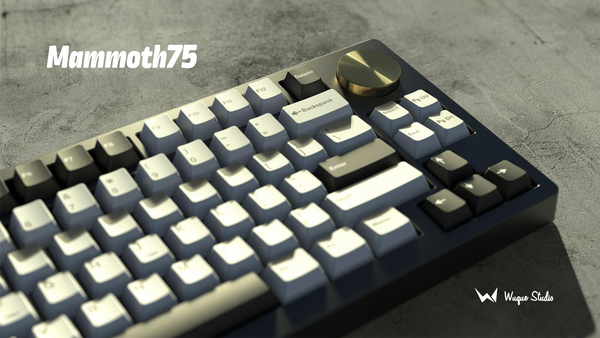

Colors: E-white, Black, Navy, Violet
Time: January 14th, 2022 - Feb 7th, 2022
Estimated Delivery:  July 2022 to Vendors

Vendors

• US: CannonKeys
• Canada: Mech.land
• Oceania:Daily Clack
• EU: Mykeyboard
• UK:Proto[Typist]
• Singapore: iLumkb
• Philippines: Zion Studio
• Malaysia: Redult
• Taiwan: Inpad
• Thailand: Gamingplanet
• Vietnam: Taobaosop
• Rest of the world: Wuque Studio

Limits

Note: sandblasted Aluminum bottom case version has a soft limit so it's not listed here.

The purchase limit per household is:

• 2x Sandblasted aluminum bottom case version
• 1x Mirror PVD aluminum/Mirror PVD brass/Sandblasted brass bottom case version

Any kits ordered beyond the limit will be refunded, minus a 4% processing fee.

A standard sized, widely available LiPo battery is required for Bluetooth editions but it's not included with the kit. You can source it on your own.

Battery Specifications:
Mammoth75: 3543114
Mammoth20: 303450
JST1.25
