Originally designed by kkatano, the Bakeneko60 is an open-source keyboard featuring an o-ring gasket. An o-ring between the plate and PCB provides friction to hold the plate/PCB assembly in the one-piece case. Cutouts on the PCB allow the o-ring to rest on the mounting points built into the case. The result is a bouncy typing feel with a great sound profile.
The Bakeneko60 features a few key changes from kkatano's original design: We closed the bottom holes, added cutouts to the plate (to allow for assembly removal), and modified the case to be made using a casting process. We also designed our own PCBs (hotswap & solder) with multiple layout support.
The Bakeneko60 is made from aluminum alloy using a casting process vs CNC. The decision to use cast aluminum was made to drive down cost maximally, and to more quickly produce keyboards. One tradeoff of the casting process is different surface finish properties.
Please reference thisquality guideon what you can expect for surface finish quality with the Bakeneko60.
Our intent is to try to keep these in stock, or at the least have a quick cadence of restocks.
We hope you're pleased with not just the value of this keyboard, but the entire experience.

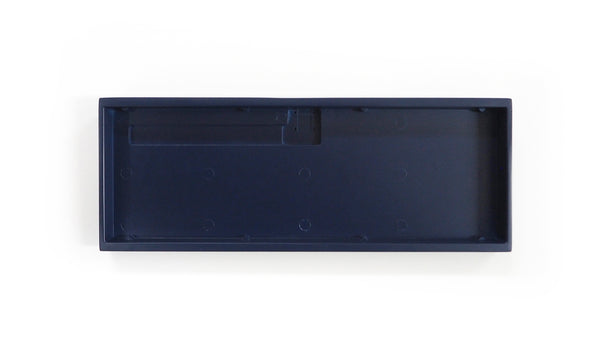

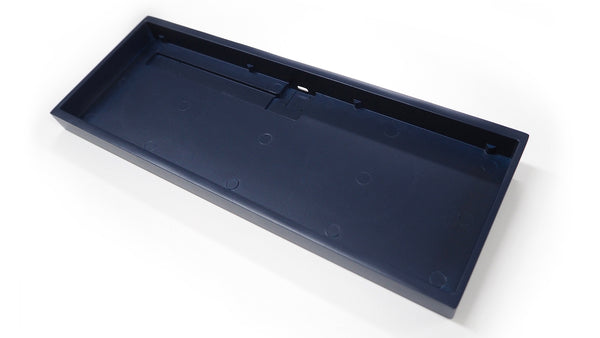

Cast Aluminum Case
700g weight unbuilt, 1.1kg weight built

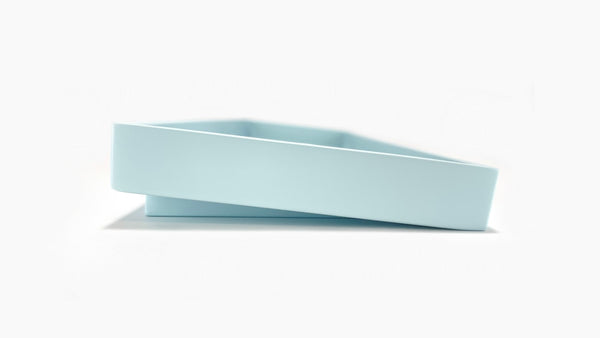

6 Degree Typing Angle
O-Ring Gasket Mount Style
CannonKeys Hotswap PCB with ANSI layout (CannonKeys Solder PCB available as extra)

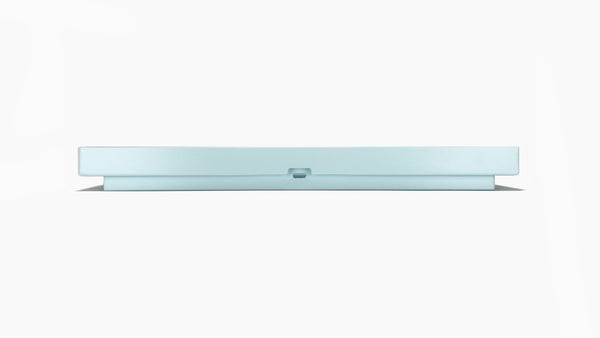

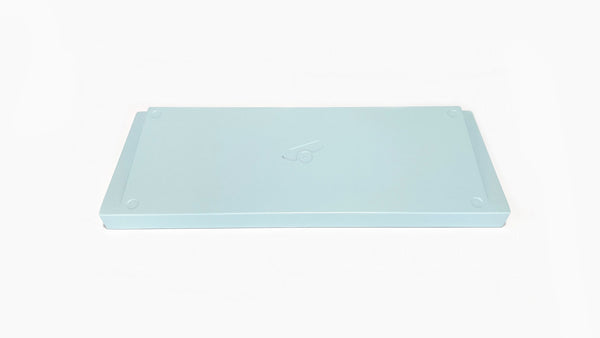

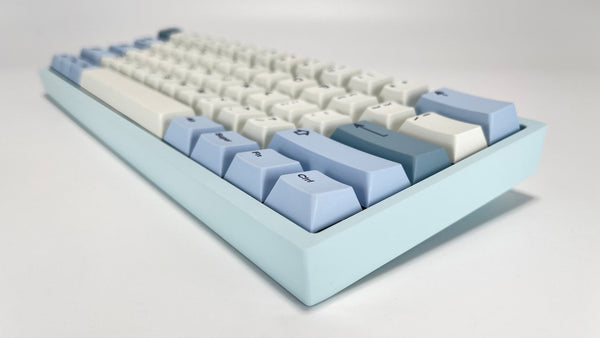

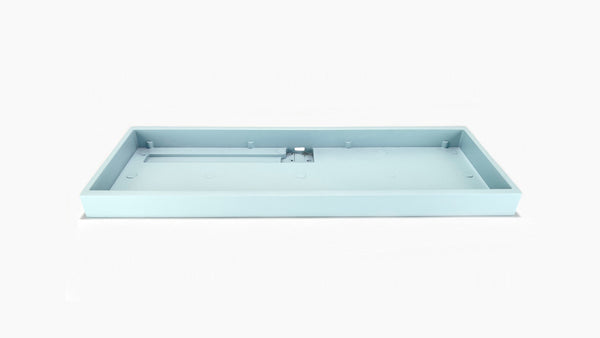

Sky Blue (painted)

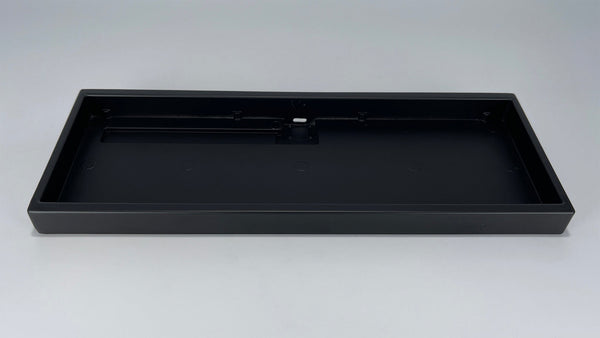

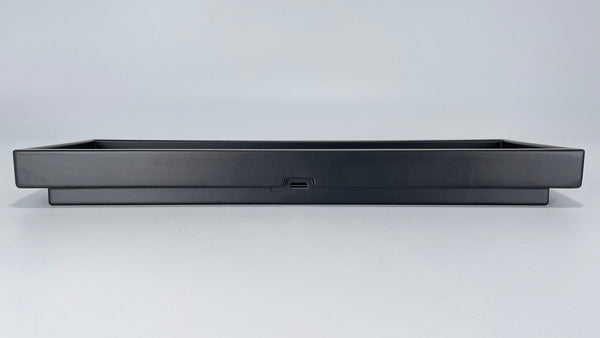

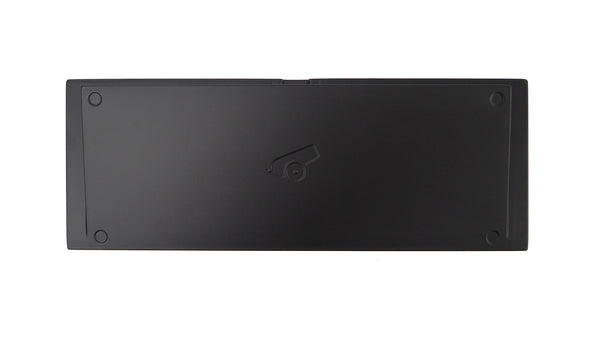

Black (powder coated)

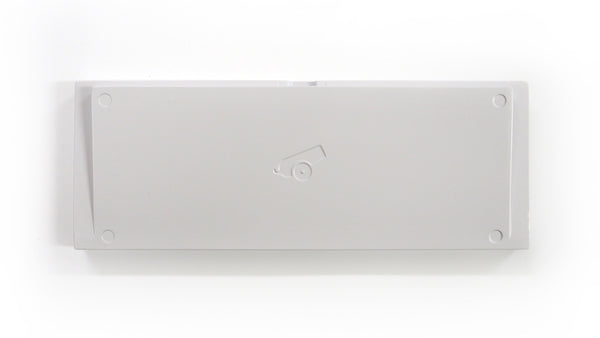

Whitish (powder coated)
Bakeneko60 Aluminum Case
CannonKeys Custom Foam Carrying Case (Black)
50A Silicone O-Ring Gasket
FR4 Universal Plate
CannonKeys ANSI Layout Hotswap PCB(no LED support)
C3 Unified Daughterboard (with ESD protection) and JST Cable
A set of Stabs

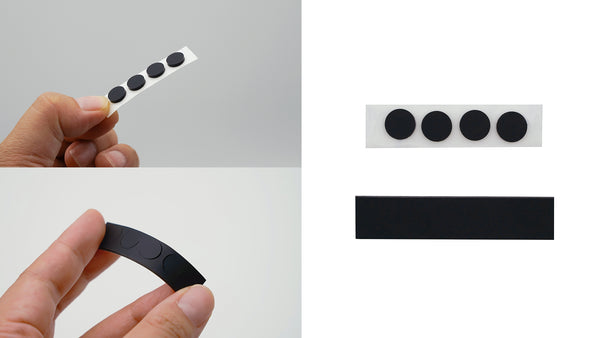

Custom Bumpon-compatible Silicone Feet (if you lose them, you can use regular bumpons)
