PCBs
PCB Specifications:

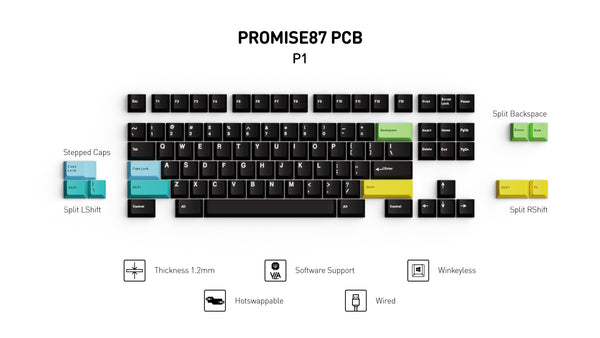

P1 PCB for WKL Version
Wired, hotswap, supports QMK/VIA, split left/right shift, split backspace, stepped caps lock,1.2mm thick, flex cuts.

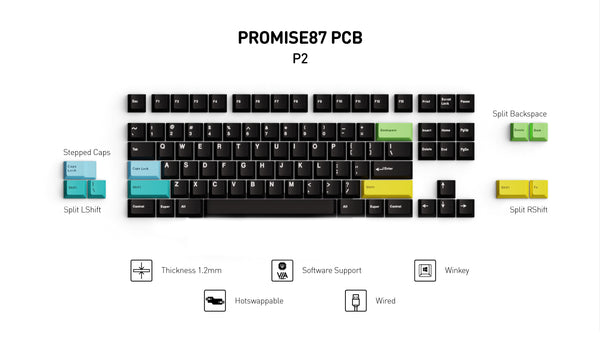

P2 PCB for WK Version
Wired, hotswap, supports QMK/VIA, split left/right shift, split backspace, stepped caps lock,1.2mm thick, flex cuts.
P3 and P4 PCB compatible with WK &WKL Version

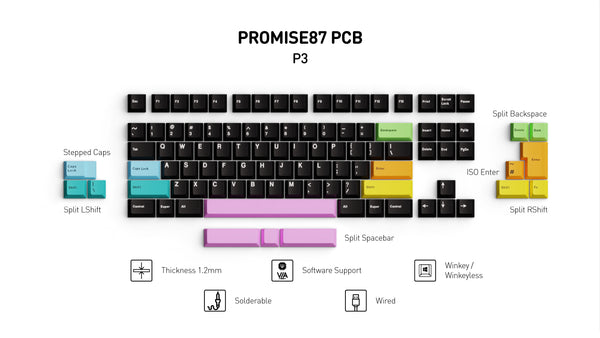

P3 PCB
Wired, soldered, supports QMK/VIA, split space bars, split left/right shift, split backspace, stepped caps lock, ISO support, 1.2mm thick, flex cuts.

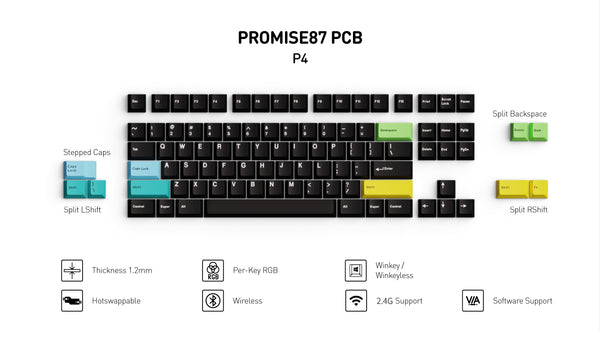

P4 PCB
Wired and Wireless, hotswap, supports VIA, per-key RGB light, split left/right shift, split backspace, stepped caps lock, 1.2mm thick, flex cuts.

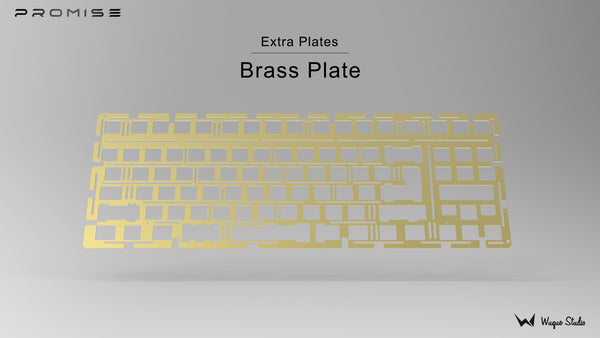

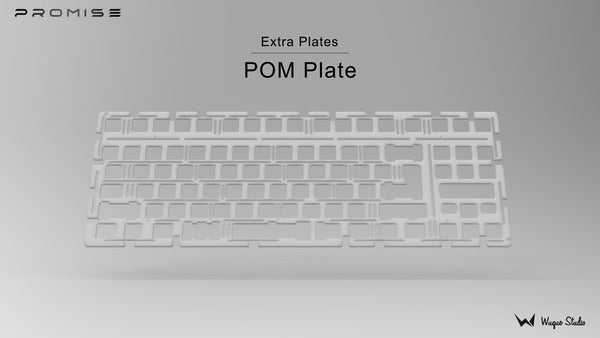

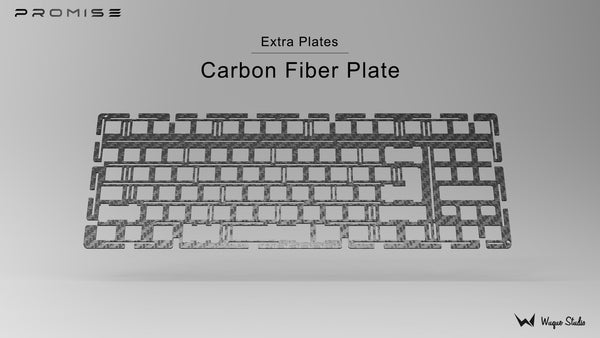

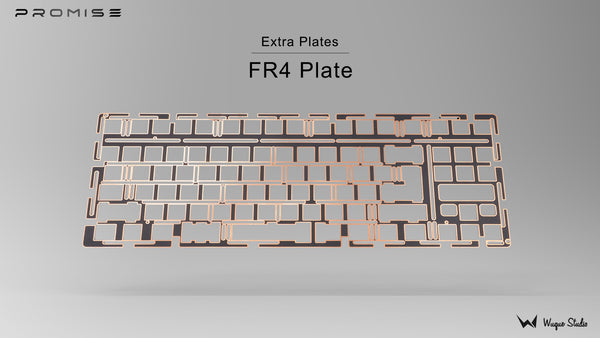

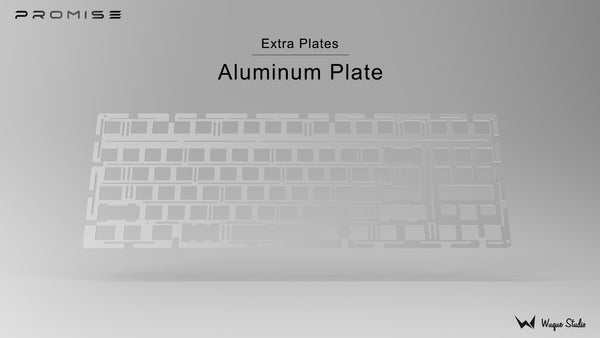

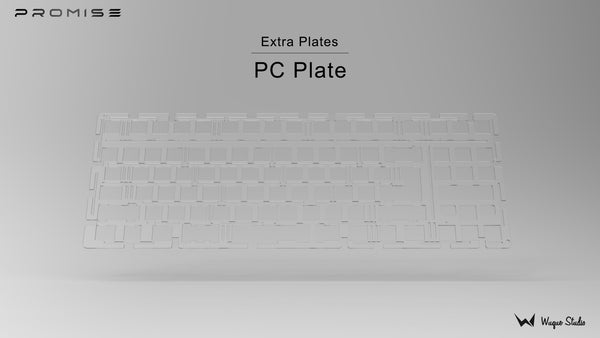

Plates
All plates are compatible with WK and WKL versions.

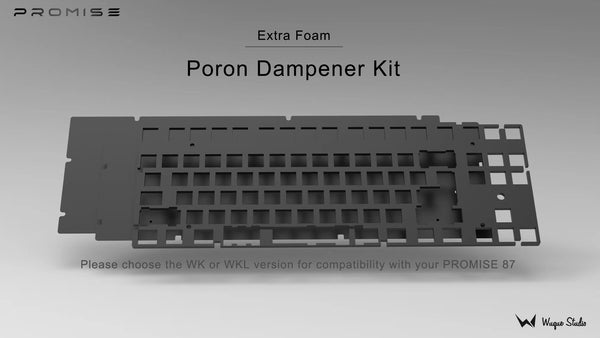

Poron Dampener Kit
The kit includes 3 pieces of poron dampeners below:
- Plate Dampener between PCB and plate
- Switch Dampener between plate and switches
- PCB Dampener under PCB
We suggest to use poron dampeners with PC plate for best results.

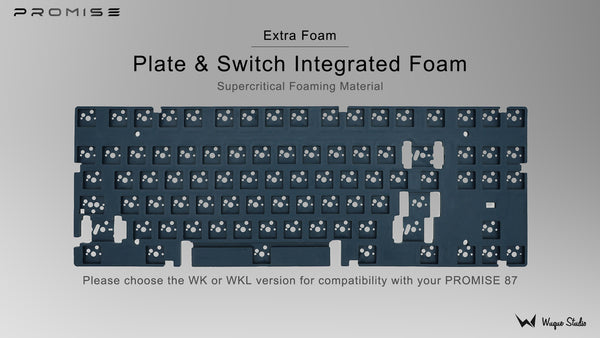

Plate & Switch Integrated Foam
- Made of supercritical foaming material, it will make the overall dampening system more stable and helps to make typing sound better.
We suggest to use integrated foam with Aluminum plate for best results.

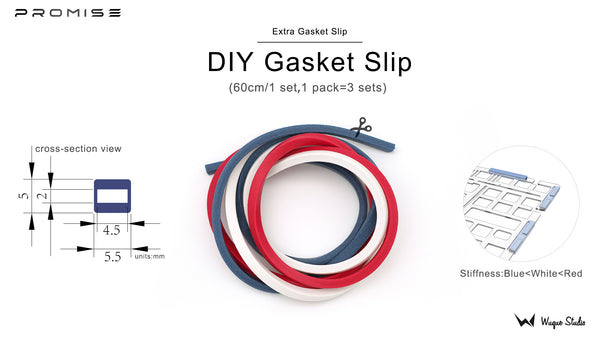

DIY Gasket Slip Pack
- Gasket slip design, easier to install
- Strong stability, very durable and can keep original flex after long-time usage
- Density between poron and silicone.
- DIY the length for other keyboard plates ( link to the picture guide).
Wuque Studio will keep stocking the gasket slips and also welcome other board designers to use our slips.
Disclaimer
- Since there are so many variations, images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.
- There will be a 4.4% fee on order cancellations and refunds after placing an order.
